LeanJet® RB-1 Automated Emersion Rotary Basket Washer
Click on a gallery photo to enlarge

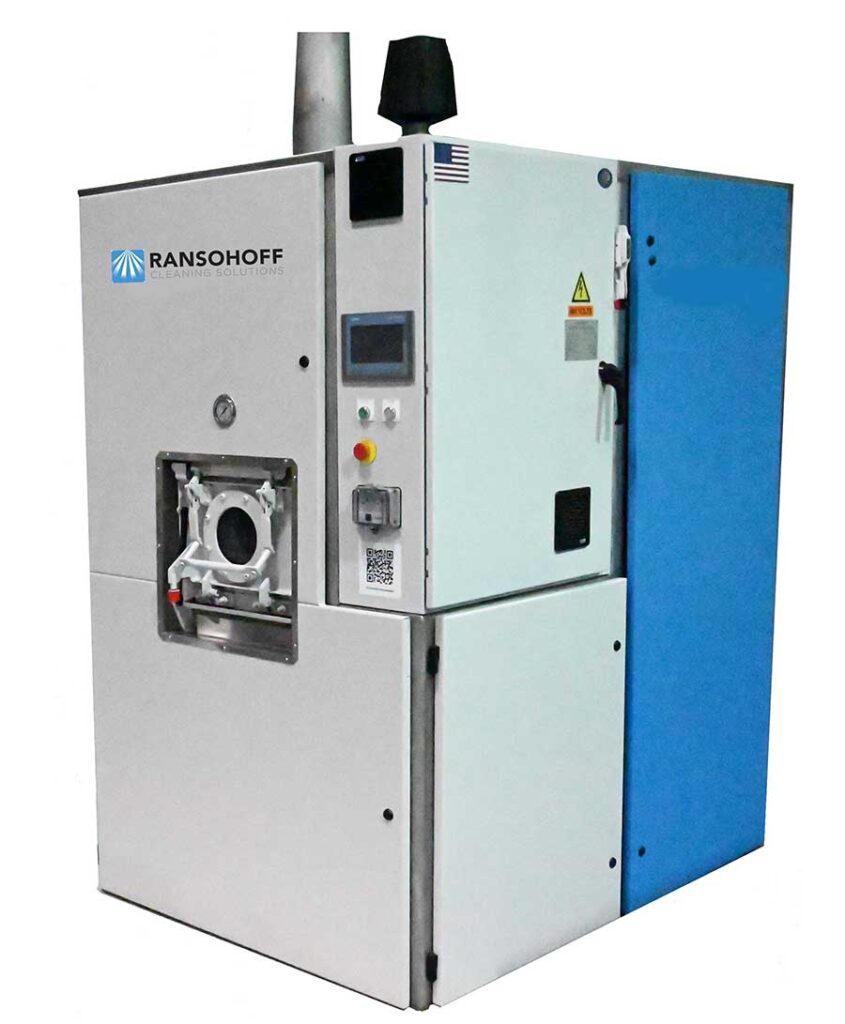

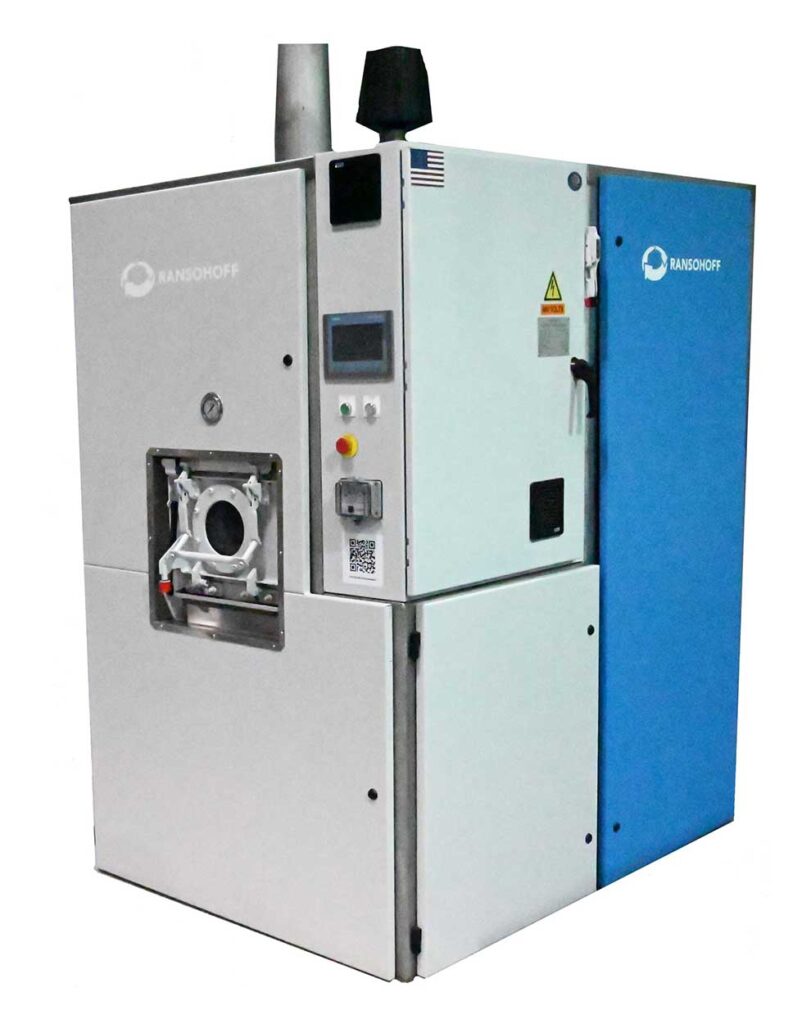

The LeanJet® RB-1 Gen 3 immersion cleaning system by Ransohoff, is designed to deliver exceptional cleaning performance in smaller production environments, the LeanJet RB-1 boasts a capacity of up to 10 baskets per hour. Its innovative cleaning process utilizes agitation, spray impingement, rotation, hydraulic purging through immersion, and heated blow-off drying to ensure thorough cleaning of even the most challenging parts, including those with internal bores and passages.
Safety is paramount with the LeanJet RB-1, featuring a totally enclosed self-ventilating process that eliminates operator exposure to vapors or mists found in other cleaning processes.
Equipped with industry-standard Kadon style baskets, the RB-1 provides protection for delicate parts throughout the cleaning process. However, customization is available to accommodate your specific basket requirements or new, custom fixtures.
Built for durability and ease of use, the RB-1 features a robust construction and user-friendly interface. The latest Siemens programmable controller and operator interface screen enhance system flexibility for automation integration, process control, and data logging, while maintenance is made easy with larger access doors, tank access lids, and a bolt-on air knife.
Compact in size with a footprint of just 4ft. wide x 7ft. deep x 6.6 ft. height, the Lean Jet RB-1 optimizes space utilization in your facility without compromising on performance.
Backed by our 3-2-1 warranty, the LeanJet RB-1 Gen 3 immersion cleaning system guarantees quality and reliability. Experience the next level of immersion cleaning – contact us today to learn more.
- Design Specs
- Optional Equipment
- Case Studies
Design Specs
| Cleaning Sequence: | Wash, Rinse & Dry |
| Process Type: | Batch |
| Part Orientation: | 12” x 18” x 6” Basket or Custom Fixture |
| Production: | Up to 6 Cycles, 6 Baskets Per Hour (Fully Adjustable) |
| Max Work Envelope: | 12” x 6” x 18” Long (Standard) |
| Method of Loading / Unloading: | Manual |
| Footprint: | 6’” Deep, 4’-2” Wide, 8’ High |
| Cleaning Mechanisms: | Spray / Immersion / Turbulation / Ultrasonics / Rotation |
| Drying Mechanisms: | High Velocity, Heated Air with Rotation |
| Controls: | Programmable Controller & HMI Touch screen |
| Typical Applications: |
|
| Warranty: | Best in Class 3-2-1 Warranty |
Optional Equipment
- Ultrasonics
- Auto Load / Unload System
- Inline Vacuum Drying System
- Oil Removal (Emulsified / Non-Emulsified)
- Enhanced Exhaust System
- Spray Line Rinse
- Enhanced Filtration

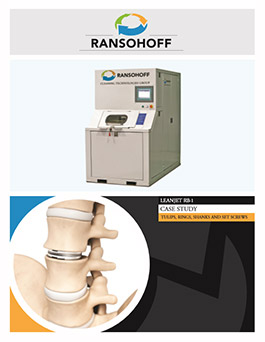

Orthopedic Implants
Spinal Implants
