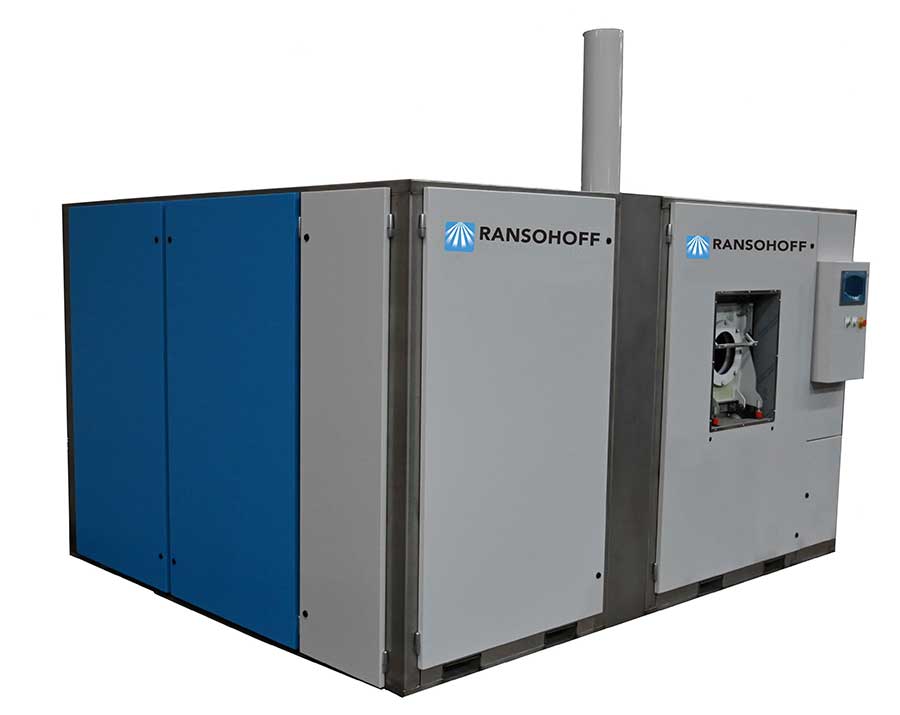

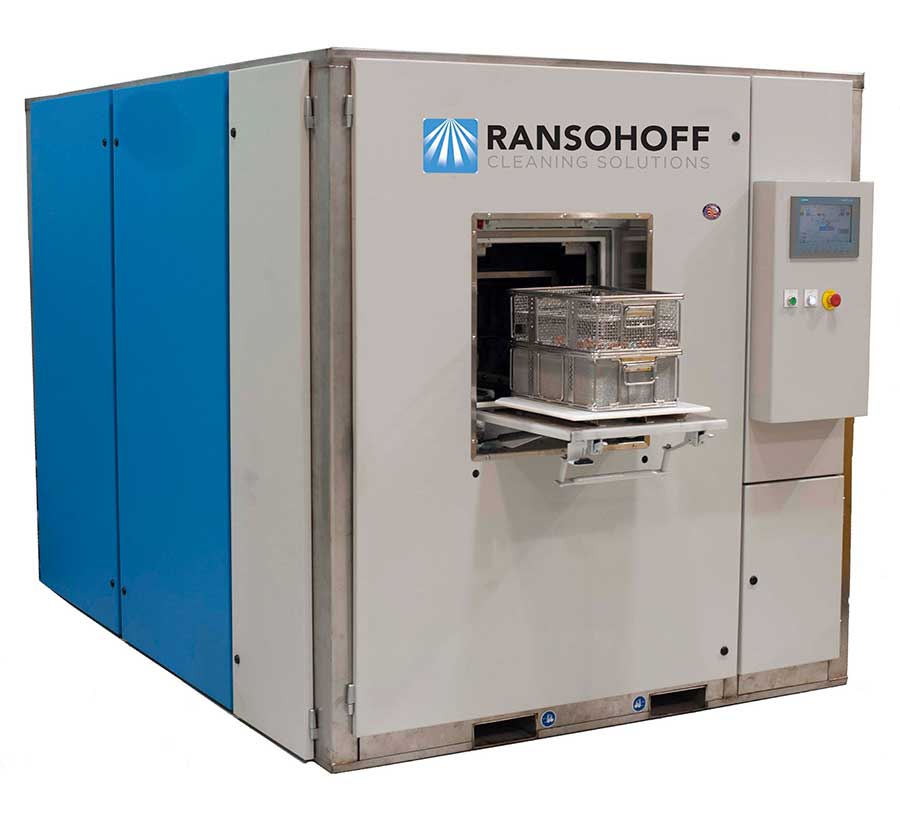

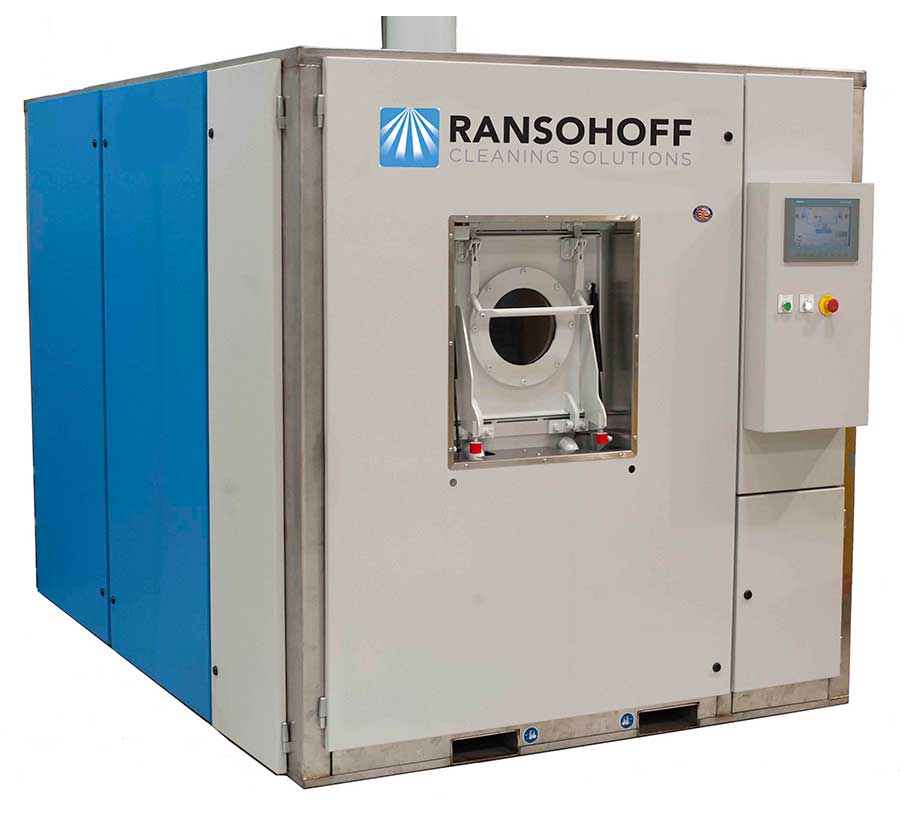

LeanJet® RB-2 Automated Emersion Rotary Basket Washer
Click on a gallery photo to enlarge
Experience the pinnacle of precision cleaning with the LeanJet® RB-2 immersion cleaning system. Engineered to process two (2) baskets of parts per cycle, delivering an impressive throughput of up to twenty (20) baskets per hour, this system is designed to meet the demands of your production environment.
Designed to seamlessly integrate into your work cell area or smaller production space, the LeanJet RB-2 utilizes our patented washing and rinsing process. This innovative process combines agitation, spray impingement, rotation, hydraulic purging through immersion, and heated blow-off drying to ensure thorough cleaning of even the most complex parts.
Our “triple action” batch cleaning process is tailored to handle a wide range of challenging parts, including those with internal bores and passages. Plus, the RB-2 can be equipped with ultrasonics for enhanced cleaning performance.
Safety is paramount with the RB-2, featuring a totally enclosed self-ventilating process that eliminates operator exposure to vapors or mists.
Standard design features industry-standard Kadon style baskets, providing protection for delicate parts throughout the cleaning process. Customization options are also available to accommodate your specific basket requirements or new, custom fixtures.
Scalable and adaptable, the RB-2 platform can be easily modified to accommodate larger parts, ensuring flexibility to meet your evolving production needs.
Experience enhanced efficiency with the automated basket loading option available with the LeanJet RB-2.
Backed by our 3-2-1 warranty, the LeanJet RB-2 immersion cleaning system offers unparalleled quality and reliability. Elevate your cleaning processes to new heights – contact us today to learn more.
- Design Specs
- Optional Equipment
- Videos
- Case Studies
Design Specs
| Cleaning Sequence: | Wash, Rinse & Dry |
| Process Type: | Batch or Continuous (Automation Available) |
| Part Orientation: | Standard 12″ x 18 x 6″ or 15″ x 24″ x 7.5″ Basket or Custom Fixture |
| Production: | Up to 10 Cycles, 20 Baskets Per Hour (Fully Adjustable) |
| Max Work Envelope: | 15″ x 15″ x 24″ Long (Standard) 20 x 20″ x 36″ Long (Custom) |
| Method of Loading / Unloading: | Manual or Automatic (Automation Available) |
| Footprint: | 10′-0″ Deep, 6′-4″ Wide, 6′-2″ High |
| Cleaning Mechanisms: | Spray / Immersion / Turbulation / Ultrasonics / Rotation |
| Drying Mechanisms: | High Velocity, Heated Air with Rotation |
| Controls: | Programmable Controller & HMI Touch screen |
| Typical Applications: |
|
| Warranty: | Best in Class 3-2-1 Warranty |
Optional Equipment
- Ultrasonics
- Auto Load / Unload System
- Inline Vacuum Drying System
- Oil Removal (Emulsified / Non-Emulsified)
- Enhanced Exhaust System
- Spray Line Rinse
- Enhanced Filtration
- Additional Recirculating Stage
Diesel Head
Turbine
Die Sets
Scope Components
