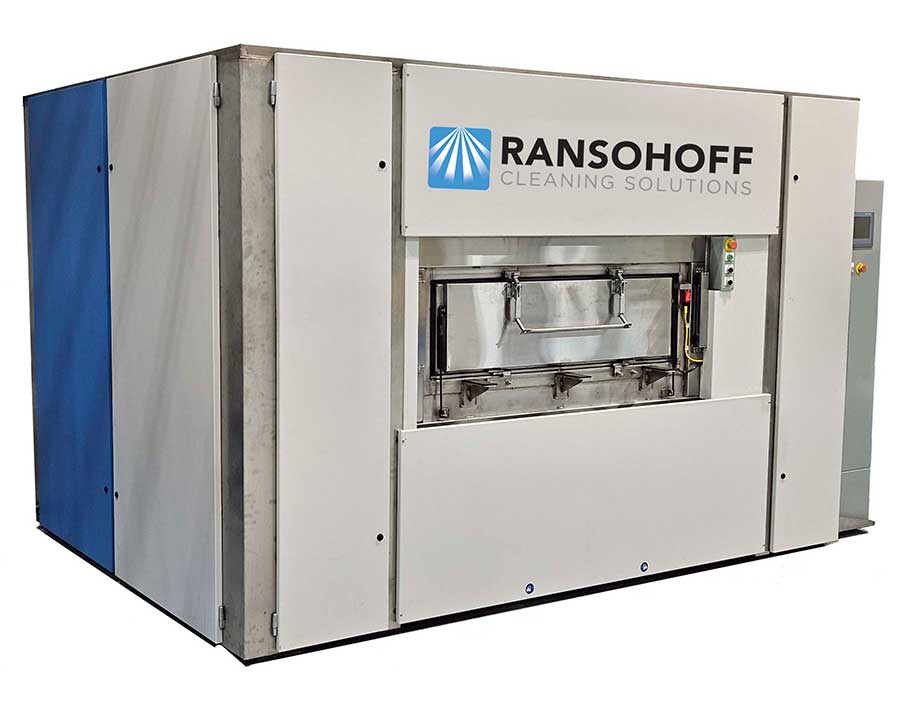

LeanJet® RB-8 Automated Emersion Rotary Basket Washer
Click on a gallery photo to enlarge
The LeanJet® RB-8 rotary basket immersion cleaning system, a cutting-edge solution designed to revolutionize your cleaning process. With its innovative rotary basket design, this system can handle up to eight (8) baskets of parts per cycle, achieving an impressive throughput of up to eighty (80) baskets per hour.
Meet the ImmersoJet HC (High Capacity) parts washer, meticulously engineered to tackle the toughest cleaning challenges. From agitation and spray impingement to hydraulic purging through immersion and rotation, coupled with heated blow-off drying, this system offers a comprehensive “triple action” batch cleaning process. It excels in cleaning parts with intricate internal bores and passages, ensuring pristine results every time. Moreover, the ImmersoJet system can be equipped with ultrasonics for enhanced cleaning power.
Bid farewell to concerns about cross-contamination. Our unique divert drain system minimizes carryover of wash solutions between stages, ensuring optimal cleaning performance. Quick-release drain actuators swiftly remove contaminant-laden solution from tanks, maintaining the integrity of your parts.
Experience standardized excellence with our industry-standard Kadon style baskets, providing robust protection throughout the cleaning journey. Need customization? Our carriage can be tailored to accommodate your existing baskets or new, bespoke fixtures.
And here’s the icing on the cake: enjoy peace of mind with our industry-leading 3-2-1 warranty, safeguarding your investment and ensuring long-term reliability. The LeanJet® RB-8 rotary basket immersion cleaning system—redefining efficiency and excellence in parts cleaning.
- Design Specs
- Optional Equipment
- Videos
- Case Studies
Design Specs
| Cleaning Sequence: | Wash, Rinse & Dry (Optional Rinse #2, Rinse #3) |
| Process Type: | Batch or Continuous (Automation Available) |
| Part Orientation: | 12” x 18” x 6” Baskets or Custom Fixture |
| Production: | Up to 10 Cycles, 80 Baskets Per Hour (Fully Adjustable) |
| Max Work Envelope: | Eight (8)-12” x 6” x 18” Long Baskets |
| Method of Loading / Unloading: | Manual or Automatic (Automation Available) |
| Footprint: | 8’ Deep, 10’ Wide, 5’-5” High |
| Cleaning Mechanisms: | Spray / Immersion / Turbulation / Ultrasonics / Rotation |
| Drying Mechanisms: | High Velocity, Heated Air with Rotation |
| Controls: | Programmable Controller & HMI Touch screen |
| Typical Applications: |
|
| Warranty: | Best in Class 3-2-1 Warranty |
Optional Equipment
- Ultrasonics
- Auto Load / Unload System
- Inline Vacuum Drying System
- Oil Removal (Emulsified / Non-Emulsified)
- Enhanced Exhaust System
- Spray Line Rinse
- Enhanced Filtration
- Additional Recirculating Stage
