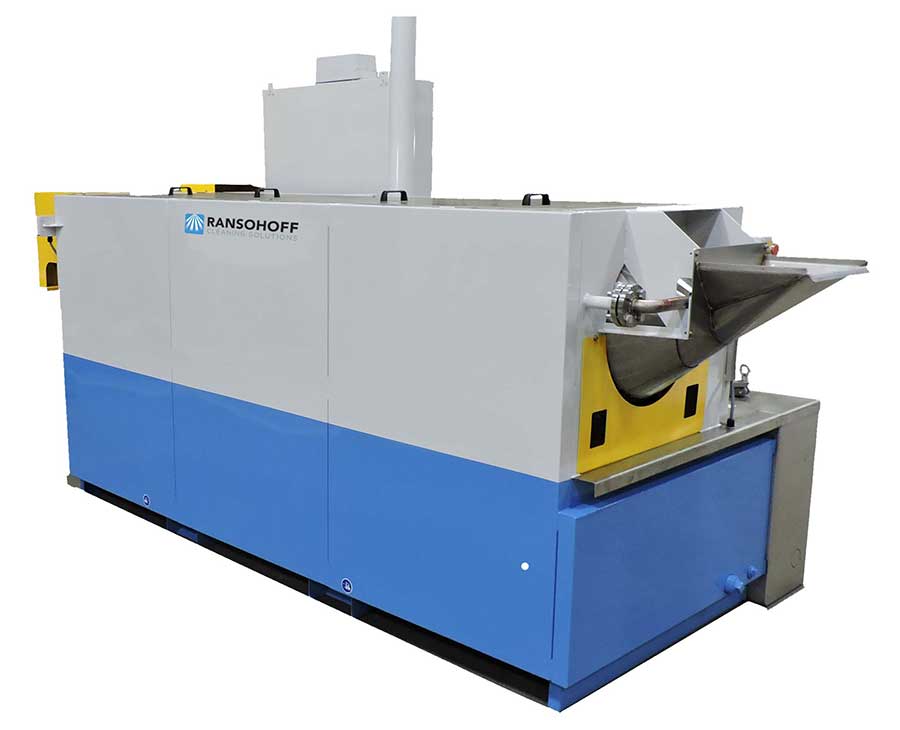

LeanDrum CF Spray Tumbling Parts Washer

The LeanDrum CF drum washer features stainless steel tanks, drum, and housing with the robust construction that Ransohoff is known for. Its unique cleaning process provides full immersion and spray cleaning, eliminating the energy losses seen in traditional spray systems, which cause significant heat loss and increased chemical usage. Key features include:

Robust Construction:

• Stainless Steel Build: The drum washer’s tanks, drum, and housing are made of stainless steel, ensuring durability and long-lasting performance.

Efficient Cleaning Process:

• Full Immersion and Spray Cleaning: This combination in the drum washer eliminates energy losses typical in traditional spray systems, improving efficiency.
• Baffled Tank Design: Ensures that a clean solution is applied to parts and enables the separation of non-emulsified oils.

Durability and Low Maintenance:

• Hardened Rollers: Provide years of service with no downtime, supporting the system effectively.
• Forced Air-Drying System: Quickly dries the parts before they exit the drum washer.

Chemical and Energy Efficiency:

• Reduced Chemical Usage: The drum washer’s design results in better oil control and longer bath life, reducing the need for frequent chemical replenishments.

Ease of Access and Maintenance:

• Quick and Safe Access: Designed for easy drum inspection, cleaning, and maintenance, contributing to extended machine life and high-quality cleaning results.

Comprehensive Warranty:

• 3-2-1 Warranty: The LeanDrum CF drum washer is backed by Ransohoff’s 3-2-1 warranty, providing three years of coverage on parts, two years on labor, and one year on the complete system. This ensures peace of mind and underscores the product’s reliability and quality.

The LeanDrum CF drum washer delivers superior cleaning performance, efficient operation, and long-term reliability, making it an ideal choice for industrial parts washing.

• Design Specs
• Optional Equipment

Design Specs

Cleaning Sequence:	Wash/Rinse/Dry
Process Type:	Continuous
Production:	Up to 12 Cubic Feet Per Hour
Part Orientation:	Random
Max Part Length:	6” Long
Method of Loading / Unloading:	Manual or Automatic
Footprint:	11′-6″ Long x 5′-5″ Wide x 5′-10″ High
Load Height:	43″
Unload Height:	33″
Cleaning Mechanisms:	Spray/ Immersion
Drying Mechanisms:	High Volume Heated Air
Controls:	Relay Logic / Push Buttons and Pilot Lights
Typical Applications:	Screw Machine Components Fasteners Ammunition Stampings Cold Formed Parts
Warranty:	Best in Class 3-2-1 Warranty

Optional Equipment

• Specialty Drum Material
• Enhanced Exhaust System
• Solution Filtration
• Load Chute
• Manifolded Drain & Overflow
• Pro-Sep
• Pro-Sump
• Chip Baskets
