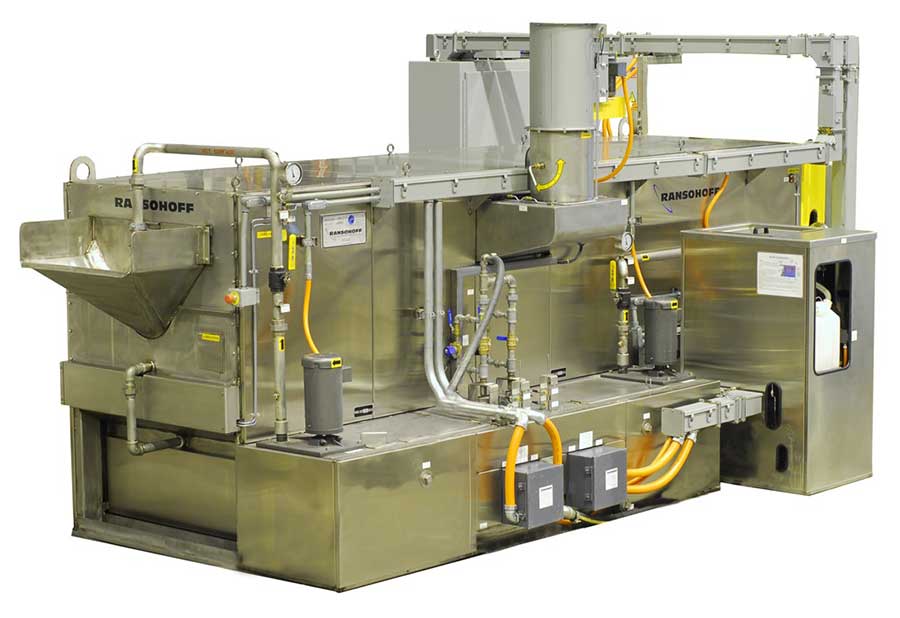

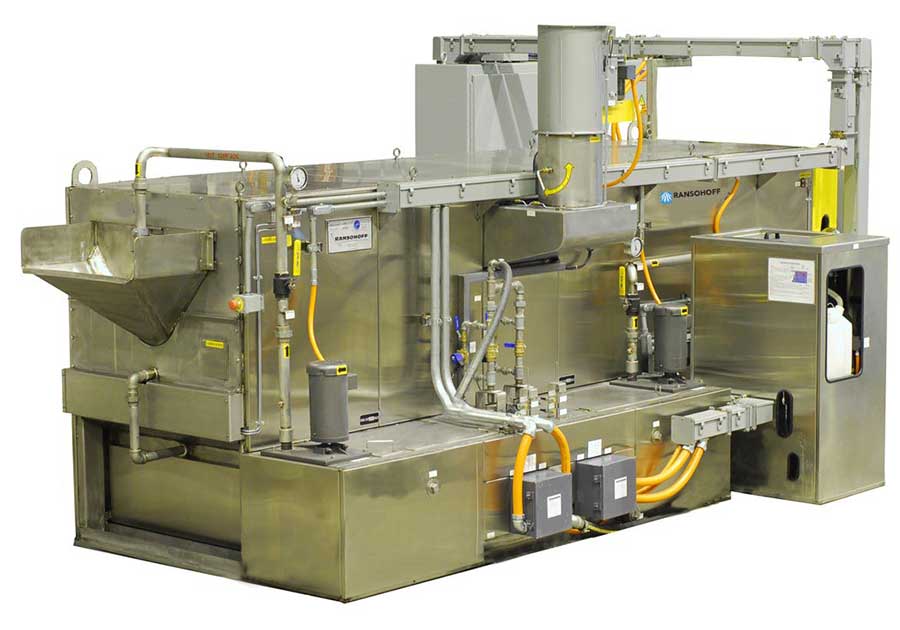

ProClean Drum Spray Tumbling Parts Washer
Click on a gallery photo to enlarge
ProClean Drum Washer Platform: Built for Heavy Duty Applications
Our ProClean drum washer platform is engineered for reliable performance in the most demanding applications. When you compare the ProClean’s features to those of the competition, you’ll see that Ransohoff stands out as the leader in design, component selection, and durability.
Heavy Duty Drum Construction
The internal components of the drum, including the helix, are welded solid, with all edges and welds ground smooth to prevent part hang-ups or damage.
Running Tracks and Support Rollers
The rotating mechanism is crucial for the overall performance and longevity of our drum washers. Ransohoff employs proprietary heavy steel running tracks and hardened steel support trunnion rollers and bearings. The entire trunnion assembly is easily adjustable for alignment and wear, ensuring optimal functionality.
Advanced Cleaning Features
- High Capacity Spray or Energy-Conserving Dip Cups for Solution Delivery: Choose between high capacity spray systems for thorough cleaning or energy-efficient dip cups to deliver cleaning solutions.
- High Volume Recirculated Air Blow Off: Ensures parts are thoroughly dried with high volume recirculated air.
- Combination Cleaning Process: Incorporates both spray and immersion methods to achieve comprehensive cleaning.
With our exclusive Ransohoff 3-2-1 Warranty, offers unparalleled quality and reliability. Elevate your cleaning processes to new heights
- Design Specs
- Optional Equipment
- Case Studies
- Video
Design Specs
| Cleaning Sequence: | Wash & Blow-Off (Multiple Rinses Available) |
| Process Type: | Continuous |
| Production: | Up to 31 Cubic Feet Per Hour |
| Part Orientation: | Random |
| Max Part Size: | 5” Cube |
| Method of Loading / Unloading: | Manual or Automatic |
| Footprint: | 12’-6” long x 8’-0” wide x 11’-11” High |
| Cleaning Mechanisms: | Spray / Immersion |
| Drying Mechanisms: | High Volume Heated Air |
| Controls: | Relay Logic / Push Buttons and Pilot Lights or PLC / HMI |
| Typical Applications: |
|
| Warranty: | Best in Class 3-2-1 Warranty |
Optional Equipment
- Specialty Drum Material
- Kicker Bars
- Enhanced Exhaust System
- Enhanced Solution Filtration
- Additional Recirculation Stage(s)
- Gas or Steam Solution and/or Blow-Off Heat
- Programmable Controller and HM
Ammunition .50 Caliber Casing
Ammunition Cases
.40 Cal Brass Cups
Brass Cups
Shells & Cups
