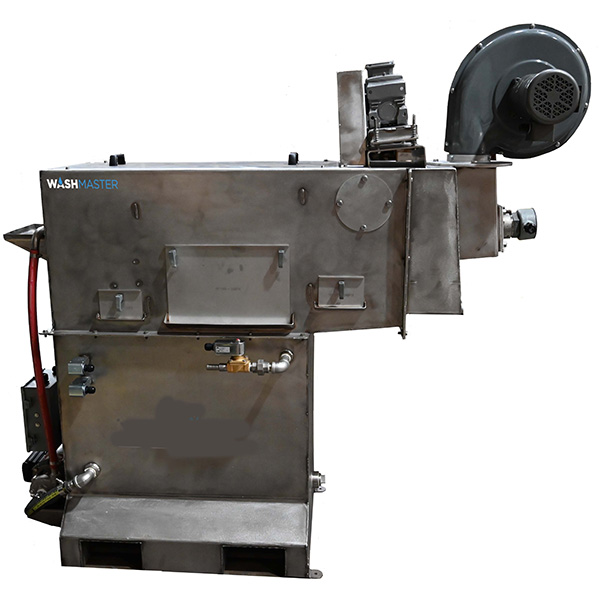

MD12 Mini-Drum Washer

Introducing the Washmaster MD-12 (Mini Drum), featuring stainless steel tank, drum, and housing—a hallmark of Ransohoff’s robust construction expertise. Its innovative cleaning process combines full immersion and spray cleaning, minimizing energy losses typical of traditional spray systems that often lead to significant heat loss and excessive chemical usage. The integrated forced air-drying system ensures rapid drying of parts before they exit the unit.

This new design not only reduces chemical consumption but also enhances oil control, thereby extending bath life. The MD-12 is engineered for easy access, facilitating quick and safe drum inspection, cleaning, and maintenance. These features collectively ensure high-quality cleaning results and contribute to an extended machine lifespan.

Experience efficiency and reliability with the Washmaster MD-12, backed by the Ransohoff 3-2-1 Warranty: three years on parts, two years on labor, and one year on travel expenses.

  • Design Specs
  • Standard Features

Design Specs

Part Size: 1″ x 1″ x 1.25″
Throughput Rate: 3 Cubic Feet Per Hour
Drum Diameter: 12″ 3/16” Perforated on 5/16” Staggered Centers
Tank Capacity: 60 Gal
Heated Blowoff (electric): 220° F
Input Power: 460V 3 phase 60Hz 24VDC
Footprint: 80″ X 29″ X 71.5″
Load Height: 42″
Discharge Height: 35.25″
Warranty: Best in Class 3-2-1 Warranty

Standard Features

  • Construction – All Welded
  • Access – Top Cover (Bolt On)
  • Tank Drain – 1” Drain w/Plug
  • Tank Cover – Removable
  • Solution Pump – Horizontal
  • Solution Spray Bar – Pipe w/Drilled Eyelets
  • Solution Level Control – Automatic Water Make Up
  • Solution Heater Protection – Low Level Cut-Off Switch
  • Blow-Off Fan – Pressure Blower
  • Blow-Off Heater Protection – Hi Temperature Cut-Off Switch
  • Drum Drive – Variable Electric Motor & Speed Reducer
  • Drum Speed – 2 RPM, Variable 1-5 RPM
